MIL-PRF-12O65E

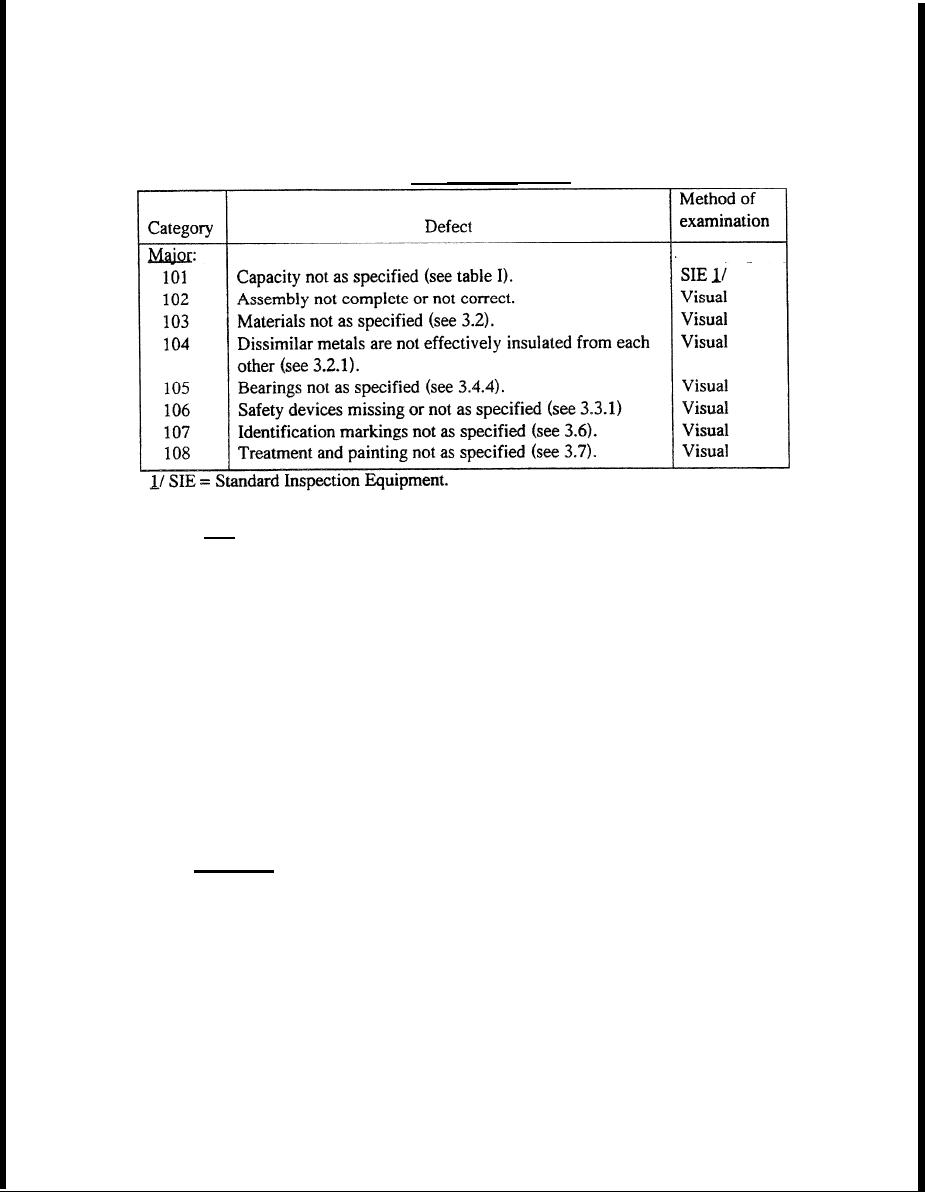

TABLE II. Classification of defects
4.3.2 Test. The performance of the winch shall be tested using the following procedures.
Lubricate the winch. The winch shall be bolted to a suitable foundation. The test load shall
cause a minimum line pull as specified in table I. The line pull shall remain constant for a length
of at least 30 ft. With the ratchet mechanism engaged, the load shall be winched for 30 ft and
then the crank(s) shall be released. The effort required shall not exceed 25 lbs per crank. No
playout of the line is allowed. The handbrake shall be engaged and the ratchet shall be released.
Using the handbrake only, controlled playout of the line shall be allowed, stopping and holding
the load at approximately 5 ft increments for a total of 30 ft. This procedure shall be repeated for
a total of 15 cycles. One cycle of the test shall be completed except the load shall be winched to
within 5 ft of the winch so that the drum is spooled to capacity (input force on the crank(s) may
exceed 25 lbs). Any evidence of damage, operating difficulties, or malfunctions shall constitute
failure of this test.
5. PACKAGING
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as
specified in the contractor order (see 6.2). When actual packaging of materiel is to be performed
by DoD personnel, these personnel need to contact the responsible packaging activity to ascertain
requisite packaging requirements. Packaging requirements are maintained by the Inventory
Control Point's packaging activity within the Military Department or Defense Agency, or within
the Military Department's System Command. Packaging data retrieval is available from the
managing Military Department's or Defense Agency's automated packaging files, CD-ROM
products, or by contacting the responsible packaging activity.
7
